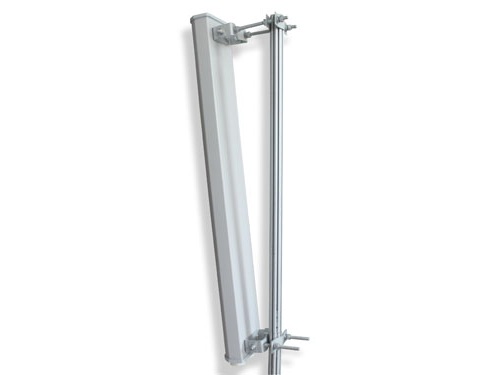

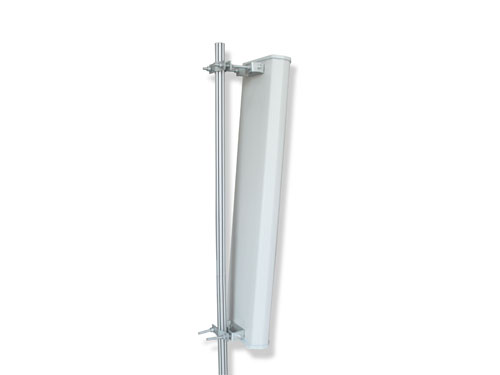

15dBi 18dBi 2G 3G 4G Cell Phone External Antenna Wide Band Panel

  • 1
  • 2
  • 3

Frequency : 2400-2500MHz

Impedance : 50OHm

RF Connect Type : N Female

Weight : 4.5 kg

Bandwidth : 100MHz

Brand Name : ATNJ

Model Number : Wide Band Panel Antenna

Certification : CE,ROHS，CCC，TUV,BV， ISO

Place of Origin : China

MOQ : 5Pcs

Price : USD+110--130+unit

Supply Ability : 1000+unit+per day.

Delivery Time : 3-5 work days

Packaging Details : Standard neutral packing3.5x3.5x3.5cm(1pcs),

Warranty : 2 year

Max power : 100W

Products name : cellular signal booster

Payment Terms : T/T,Western Union,Paypal,Bank transfering

Gain : 15-18dBi

Beamwidth : H:120° E:15°

Contact Now


15dBi 18dBi 2G 3G 4G Cell Phone External Antenna Wide Band Panel


15-18dBi Wide Band Panel Wireless 2G 3G 4G Antenna for Mobile Phones Signal Repeater


Wide Band Panel Wireless 2G 4G Antenna coverage,Lower return loss and stable performance,Compact design,light weight.

The High-Gain Panel Antenna is made from weatherproof and corrosion-resistant material,easy and flexible wall or mast-mounted installation.

The antennas carrier grade construction features a light,PVC radome for durability and aesthetics.


Further detail pls click here for downloading the products specification:

ATNJ Mobile Signal Repeater.pdf


Product Description
Model
BT - PV2400 - 13 - 120
Frequency Range
2400 - 2500MHz
Bandwidth
100MHz
Gain
15 - 18dBi
Beamwidth
H : 120° E : 15°
VSWR
≤ 1.5
Polarization
Horizontal or Vertical
Max power
100W
Nominal Impedance
50Ω
Connector
N female
Antenna Dimension
607 x 175 x 65 - mm
Weight
4.5Kg
Rated Wind Velocity
60m/s
Diameter of the Pole
Φ40~50



15dBi 18dBi 2G 3G 4G Cell Phone External Antenna Wide Band Panel
15dBi 18dBi 2G 3G 4G Cell Phone External Antenna Wide Band Panel
15dBi 18dBi 2G 3G 4G Cell Phone External Antenna Wide Band Panel
15dBi 18dBi 2G 3G 4G Cell Phone External Antenna Wide Band Panel
15dBi 18dBi 2G 3G 4G Cell Phone External Antenna Wide Band Panel15dBi 18dBi 2G 3G 4G Cell Phone External Antenna Wide Band Panel

15dBi 18dBi 2G 3G 4G Cell Phone External Antenna Wide Band Panel15dBi 18dBi 2G 3G 4G Cell Phone External Antenna Wide Band Panel15dBi 18dBi 2G 3G 4G Cell Phone External Antenna Wide Band Panel

FAQ:


Q1 Could you send us antenna sample for qulification?
A : Yes, we will consider the antenna sample qulification as the first step of our long term coorperation, we will rebate the sample charge in further mass production order.


Q2 What's the minimum order of your company?
A : Our company didn't define the min order, we will offer any quantity demands.

Q3 May I visit your company?
A : We will be always right here waiting for you.

Q4 Are you a manufacture or a trading company?
A : We've manufactured mobile signal booster with Professional Technology for ten more years.

Q5 Do you accept customizable antenna?
A : Yes, we accept OEM & ODM.

Q6 What't your sample lead time?
A : We will ship within 15days after been paid.

Q7 What is your payment terms?

A : We accept Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
